The ARGO Elfin 249;
Replica or What?
by Adrian Duncan
This time we present a "wotizit" with a difference! We'll be examining a relatively recent American-built model diesel engine which was produced in the early 1990's to meet the needs of the US Old Time competition community. This is the ARGO 2.49 cc (.15 cuin.) diesel which was popularly referred to as a replica of the famous Elfin 2.49 cc plain bearing radial mount model of 1949.
There's no doubt at all about either the name or the manufacturers of this engine. In that sense, we know exactly what it is. The issue which remains to challenge us is—should it really be referred to as a replica? An interesting question, which applies to far more "replica" engines than just the ARGO!
When I began to research this topic, purely out of general interest stimulated by an example of the ARGO falling into my lap, I quickly encountered a range of strongly-held and often conflicting opinions regarding the true nature both of this engine and its purpose. There was general agreement that it was (and indeed is) a very well-made and useable unit which combines a "classic" appearance with a very acceptable level of performance. The real bone of contention centred upon the extent to which it should be characterised as a true replica, both by collectors/fliers and (perhaps more controversially) by competition rule-makers.
This in turn highlighted a broader philosophical debate which has long been ongoing and will doubtless continue forever with no resolution! This is the degree to which old time (aka vintage) modelling should or should not remain faithful to its origins, including (but not limited to) the powerplants used. An evaluation of the ARGO Elfin appeared to me to offer an excellent opportunity for what I hope will be seen as an objective review of this issue.
Accordingly, before turning our attention specifically to the ARGO, we'll present a discussion of replica engines in general and their place in the aeromodelling community. In doing so, we realize that we will probably draw fire from critics on both sides of the debate! Recognizing this, we will try very sincerely to present both sides of the issue as objectively as possible, leaving it to readers to make up their own minds.
Before getting started, I'd like to extend my thanks to all of my colleagues who shared their views on the subject at hand. In particular, I'd like to acknowledge the assistance rendered by David Owen, Tim Dannels, Ken Croft, Eric Offen, Maris Dislers, Jon Fletcher and Bob Stalick. Plus as always, a word of sincere thanks to our long-suffering Editor, Ron Chernich. Thanks, guys!
The "Replica" Debate
The production of replicas of model engines by someone other than their original manufacturer is by no means new. In fact, it goes back at least as far as the early post-WW2 era, and possibly even further. An early example to which David Owen has drawn attention in the present context is the Swiss-made Fischer Castor of 1951, which was a close copy of the very same Elfin 2.49 cc radial-mount model which is central to our main subject. An example of the Castor won the first FAI World Free Flight Championship in 1951, also finishing second in the 1952 event. The superb Swiss-made AMRO 10 cc copy of the Dooling 61 is another well-known early example.
From the late 1940's through the 1950's, Gordon Burford of Australia made a number of engines which, while not marketed as replicas, were very strongly influenced by overseas originals. Another well-known example from 1957 was the Russian-made MD-5 Kometa glow-plug motor, which was a near-clone of the contemporary Super Tigre G21/29 model. The Russians also produced close copies of other well-known engines such as the Webra Mach I, the Super Tigre G20/15 and the MVVS 2.5R/1958. Near-replicas of several British diesel designs were also produced in Czechoslovakia by Gustav Bušek.
The important distinction between these and later replicas was their purpose. They were not replicas of out-of-production models—on the contrary, at the time of their introduction the engines on which they were based were still readily available from their original manufacturers in their countries of origin, or at least still in wide circulation. Hence these early replicas were not produced to satisfy collectors or to comply with rules for a "period" competition of some kind. Their purpose was simply to make certain current engines (or more precisely, copies thereof) available in countries to which the original manufacturers did not or could not export their products. If an original was not obtainable, a replica would do! In a very real sense, the appearance of such replicas was a high compliment to the reputations of their original designers.
What changed matters significantly as time went by was the increasing chronological separation of active modellers from the dates of manufacture of the older engines, particularly those from the "pioneering" era. As these engines became ever older, they became viewed with increasing nostalgia, particularly by the growing community of aging but still-active modellers who had used them in their younger years.
This in turn led to the development of two parallel albeit closely-related movements. One was the rise of engine collecting as a recognized activity among those for whom the engines themselves had always constituted a primary focus of interest. I confess to being largely in that camp myself, although my interests go well beyond mere collecting into the pursuit of hands-on research along with the experience of actually running and flying these engines. A row of engines quietly aging in a display case does little for me ... if that was all there was to collecting, I'd be long gone!
The other parallel factor was a rising interest in nostalgia flying. This involved the building and flying of models which were designed, constructed and equipped as far as possible in accordance with the standards which prevailed during the "pioneering" era which bracketed WW2.
Although quite a few individuals had their feet firmly planted in both camps simultaneously, a certain degree of competition between these two movements was of course inevitable. Both groups sought original engines either for their collections or to use in "period" models (or in some cases both). However, the pure collectors displayed a marked tendency to hoard their acquisitions, the result being that many engines which ended up in collections were effectively removed from circulation. This of course reduced the availability of such engines, thus creating supply difficulties both for the flying community and the growing ranks of collectors. Since the supply was finite given the fact that production of the engines in question had long ceased, this led to a steady rise in the selling prices of good examples of earlier engines.
In conservation terms, this had one very positive effect—the old "junk" engines in the attic or in Dad's old model box became increasingly seen as having a value and thus worthy of being brought out of hibernation to be offered for sale rather than being thrown out with the rubbish when it came time to clean out the attic. The result was that a good few collectible engines which might otherwise have ended up in the dump were returned to circulation. Not only that, but their restoration became worthwhile given the extent to which a competent restoration can increase a given engine's interest and value. The overall result was that for a while the supply of original or well-restored examples of many engines actually increased or at least held steady.
However, this could not last. Many of the better original or well-restored "recovered" examples of the more desirable or less common engines were soon absorbed in turn into the collecting and vintage flying communities, once again severely limiting the remaining numbers in circulation and thus placing further upward pressure upon prices. Over time, this process continued to the point where even many of those who had acquired such engines with the sincere intention of using them for flying purposes became reluctant to do so given the monetary value and replacement difficulties associated with the engines in question. For these individuals, a replica of their engine offered a viable and practical alternative to risking an original, as well as potentially permitting their original engines to be sold to the collector community to finance further modelling activities.
Through this process of transference from the flying to the collector communities, the availability of many engines tended to become even further restricted. Indeed, it was not only the flying community which suffered from the effects of this process—there were many latecomers to the collecting community who wished to acquire examples of certain engines for display or bench-running purposes but could not afford or even locate an original. Basically, the ever-growing demand had overtaken the finite supply. This being the case, for these individuals too a replica was undoubtedly the next best thing.
In this manner, both engine collectors and vintage fliers became potential customers for replica engines. Under these circumstances, it was inevitable that the production of such replicas would enjoy a renaissance. Indeed, it was only the development of this situation that made the quantity production of replicas an economically feasible proposition.
Although it began somewhat earlier, the "modern" replica engine movement really started to gain traction in the mid 1980's, continuing to this day (2013). An amazing variety of pioneering model engines has now been subject to the replica treatment—indeed, many of the replicas have now themselves become seen as valuable collectibles in their own right. This latter factor naturally gives rise to its own set of problems ...here we go again!
This brings us to the heart of the present-day debate—why buy a replica, and what should one expect from a replica? As far as I can tell, the original reason for the creation of replicas (making a given current design available in areas in which it otherwise would not be available) has long ago ceased to have any validity. The present-day International marketplace is sufficiently open that modellers or collectors anywhere in the world have equal access to what's currently available. So what's left? The three potential answers seem to be as follows:
To be able to display or experience a replica of an engine which would otherwise be too costly or too difficult to obtain. This is the basis for the "collector" market for replicas. In this situation, the replica clearly needs to be as close as possible to the original. The one exception to this is when a given replica (whether faithful to the original or not) becomes seen as a valuable collector's item in its own right and hence as a desirable acquisition for display purposes. This actually happens quite frequently.
To be able to re-create an accurate "period" model aircraft for which an original contemporary engine is either not available or too valuable to risk in flight by using a replica of the desired engine, keeping all aspects of the model design, construction and equipment as close as possible to the originals. Here the objective is to experience model flying as it really was back in the pioneering era, the competitive element being of lesser importance. This approach to vintage flying has many adherents in Britain. In this instance too, the engine to be used needs to be as accurate a replica of the original as possible, very much including its handling and performance characteristics.
To compete in competition classes which require that models and engines bear a visual similarity to the originals without necessarily requiring complete historical accuracy. This approach seems to find more favour among vintage flying adherents in North America. Here the objective is the same as it is for any other competition class—to win the competition using whatever equipment is allowed under the prevailing rules. In this case, the rules do not require the equipment used to be historically accurate—it merely has to appear to be historically accurate. Such twists as the use of non-period materials and the re-scaling of model designs are viewed as perfectly acceptable. Moreover, the engine used does not necessarily have to be an exact replica of an original—it merely has to have the general appearance of the original. If it performs at a higher level than the original ever did, that's acceptable and probably even desirable in the eyes of such users given their competitive leanings.
Leaving the collectors in the first of the above categories out of it for now, the main focus of debate among today's nostalgia-minded modellers seems to centre upon the second and third of the above motivations for the production of replica engines. There are two distinct camps involved—those for whom adherence to originality in the design and construction of both models and powerplants is seen as important; and those for whom it is sufficient for models and powerplants to retain a general visual similarity to the originals without requiring detailed adherence to all aspects of design, construction or performance. The first philosophy seems to be more prevalent in the UK, while North American vintage fliers generally appear to lean towards the second camp. This of course is very much a generalization—there are many individual exceptions on both sides of the Atlantic!
To meet the differing needs of these two groups, replica engines have evolved along two distinct tracks. First, there are those which follow the original design and construction of the engine in question to the maximum extent possible, albeit occasionally incorporating minor (or at least inconspicuous) improvements in detail design and material selection. These may be viewed as true replicas. They would be acceptable both to the collecting community and to the "purist" element among today's vintage model fliers.
Secondly, there are those which in effect take the original design merely as a starting point and incorporate a range of design changes intended to improve performance or durability (or both) without undue regard to the effect of such changes on the visual appearance and/or performance characteristics of the engine. Our subject model, the ARGO Elfin "replica" (remember that ) is a classic example, as we shall soon see. The final product will retain the general appearance of the original but will not pass scrutiny even at a distance as a true replica and may well perform at a higher level as well. Looking at this objectively and considering the dictionary definition of the word "replica", it appears to me to be self-evident that such engines are more correctly characterized as "look-alikes" rather than true replicas.
I confess to being able to see that either of the above approaches must subjectively appear valid to those holding those views. In my personal opinion, it's not a question of which view is correct—for a given individual, either can be. Rather, it comes down to the experience that each individual modeller is seeking. Does he wish to experience modelling as it really was back in the day, or is he simply interested in competing against other fliers using equipment which may have the appearance of being Old Time but which may not adhere to certain aspects of modelling as it truly was "back then"? As long as the rules are clearly defined and impartially enforced, both approaches seem valid to me—you simply take your choice! I have my own preference, but I can also see the other point of view.
However, there is a factor creeping into the third of the above categories which in my personal view represents a far more insidious threat to the legitimacy of old time competition. This is the acceptance of "replica" powerplants based on originals which never existed during the old time era! A prime example which comes immediately to mind is the Chinese-made CS "E.D. Hunter" .19. The production of this "replica" was inspired by the fact that a number of US old time modellers saw the potential advantage of using the E.D. Hunter (or a replica thereof) in their Class A competitions. However, the Hunter's displacement of 3.46 cc (0.211 cuin.) precluded this given the Class A displacement limit of 0.199 cuin.

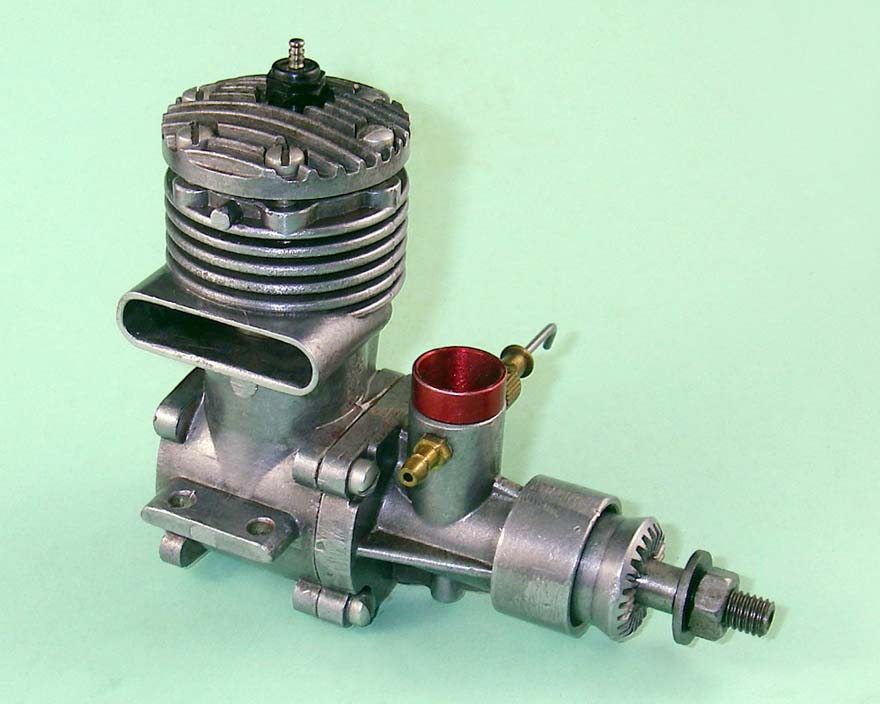

The CS company of Shanghai, China had been making a replica of the 3.46 cc E.D. Hunter for some time. Although they suffered from the usual CS quality control issues, these "Hunters" were actually one of CS's better efforts. They could be made to run at least as well as the originals, as I know from my own experience with one of the 3.46 cc versions which received a thorough "going-over" at my hands prior to its initial start—very necessary with all CS engines. I would objectively rate this unit as a reasonably faithful replica with a performance very close to that of the original. It has seen good service in the air.
To get around the previously-noted difficulty relating to the Hunter's displacement, the CS company made a run of "Hunters" which looked very much like the originals but were internally dimensioned to comply with the .199 cuin. displacement limit for Class A. The problem here is that no Hunter .19 ever left the E.D. factory! It's my personal view that this is carrying the replica engine thing one step too far. Nonetheless, SAM has homologated this "engine that never was" for use in US Class A competition. I will admit to having problems with that ... others are almost sure to follow.
Sadly, another similar philosophical challenge has now arisen in connection with the Old Time Stunt category of control-line competition. This is the recent decision to allow electric powerplants into this category, at least in North America. I would be fine with this if electric competitors were required to use late 1940's/early 1950's electric technology (yes, there were electric control-line models back then!). However, the use of the modern electric super-motors appears to me to make a mockery of the entire Old Time concept. Not only that, but it removes one major element of skill from the competition—the securing of that elusive perfect motor run. Flip the switch—presto! One perfect motor run coming right up... for me, the category has parted company with its soul. Heck, it doesn't even sound right!
My purpose in presenting the above brief survey is to try to demonstrate that there are a number of perfectly valid reasons for acquiring a "replica" engine, whether faithful to the original or otherwise. If there is one thing that I would personally change about the terminology in current use, it would be the more representative application of descriptive terminology applied to such engines. In my view, it would be most helpful if reproductions of classic engines could be separated into the distinct categories of "replicas" and "look-alikes". It would be necessary to draw up some criteria which an engine would have to meet to qualify as a "replica", and that could only be done if there was a widespread desire to do so. Given the state of present-day old time modelling, I very much doubt that such a desire will ever exist.
Regardless, once we accept the fact that both "replica" and "look-alike" engines have their own perfectly legitimate niches in the modelling world, it then becomes necessary when evaluating a given engine to determine which user category it was aimed at and how successfully it met the needs of its target purchasers. We will adhere to this principle during the following evaluation of the ARGO 2.49 cc "Elfin replica".
The ARGO Elfin "Replica": Background

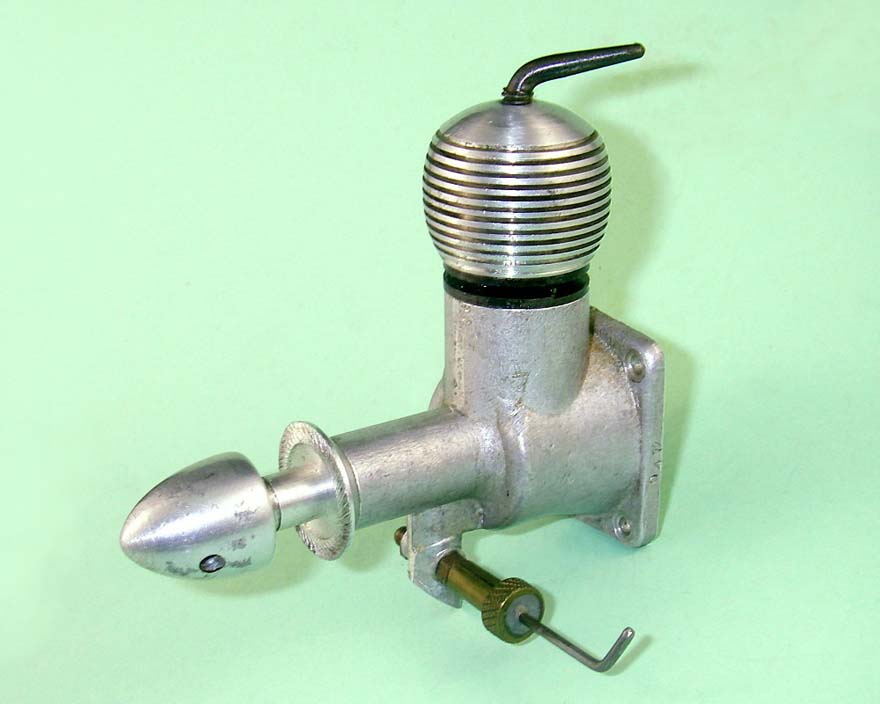

If you have read through the Model Engine News list of Pioneers, you may remember the story of Frank Newton Ellis (1909—2003) and the Elfin model engine range which was manufactured by Frank's company Aerol Engineering of Henry Street, Liverpool 13. Aerol started out in 1947 by manufacturing two successive radially-mounted 2 cc FRV model diesels, the Gremlin and Hurricane. In mid 1948 the name of the range was changed from Aerol to Elfin (a combination of Frank's surname with that of one of his associates, a certain Mr. Finn). The original Elfin product by that name was the radial-mount 1.8 cc model which appeared in July 1948. The 249 PB radial mount model which is central to the present discussion followed almost a year later in June 1949.
It would not be overstating the case to say that the appearance of the Aerol and Elfin engines drop-kicked British model engine design straight out of its side-port past into the FRV future. The engines were lighter, more compact and far more powerful than their sideport predecessors. Their retention of long-stroke internal geometry resulted in excellent torque development, enabling them to swing airscrews of useful sizes. In addition, they were unusually light and compact for their power output. To cap it all, they handled very well indeed and were dead reliable, their gravity die-cast cases in particular being practically bullet-proof. Frank Ellis deserves great credit for his efforts in this regard.

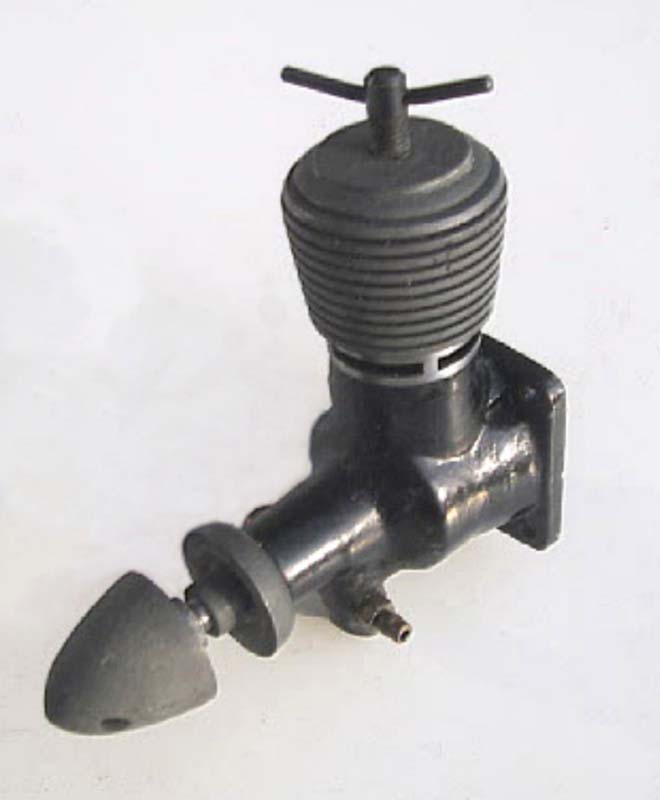

Sadly, the original Elfin 249 radial mount model did not survive long in the marketplace. This was by no means due to any failings in the product itself—rather, it came down to a simple matter of the Aerol company's inability to meet the very considerable demand which quickly developed. In his later reminiscences recounted to family friend Jim Woodside, Frank Ellis stated that the mid 1950 replacement of the original 249 radial mount model with a completely revised beam-mounted model having a pressure die-cast crankcase was entirely due to the fact that they could make the revised models faster and at a lower unit cost.
Unfortunately, the revised model was soon found to be both less powerful and less dependable than its predecessor. In particular, the revised pressure die-cast crankcase proved far less durable and resistant to distortion than the original gravity die-cast item. Consequently, the premature abandonment of the original radial mount model was widely viewed as a matter of regret, not least by Frank Ellis himself in later years. In retrospect, he reckoned that they should have continued to develop their original design regardless of the production challenges involved.
The fact that the original Elfin 249 radial mount model was held in such high regard had the happy result of ensuring that the engines were greatly valued by their owners. Consequently, although the total number manufactured was relatively small by industry standards, those that did find their way into the hands of modellers were well cared for, remaining in widespread use for some years following their withdrawal from production. Moreover, they were generally retained by their owners even when supplanted by other more advanced models—no rubbish bin for these engines! Accordingly, a higher-than-usual proportion of the engines which were manufactured have survived down to the present day (2013).
When the vintage model flying movement began to gather momentum in the 1970's and 1980's, many fliers were quick to recognize the merits of the original Elfin 249 for such purposes. In particular, by the mid 1980's diesel-minded members of the US old time flier community had become aware of the advantages of this engine for use in their Class A events, particularly in terms of its power-to-weight ratio. The Elfin's advantage in this respect more than offset any handicap which might be anticipated as a result of its displacement shortfall relative to the Class A limit of 0.199 cuin. (3.26 cc).

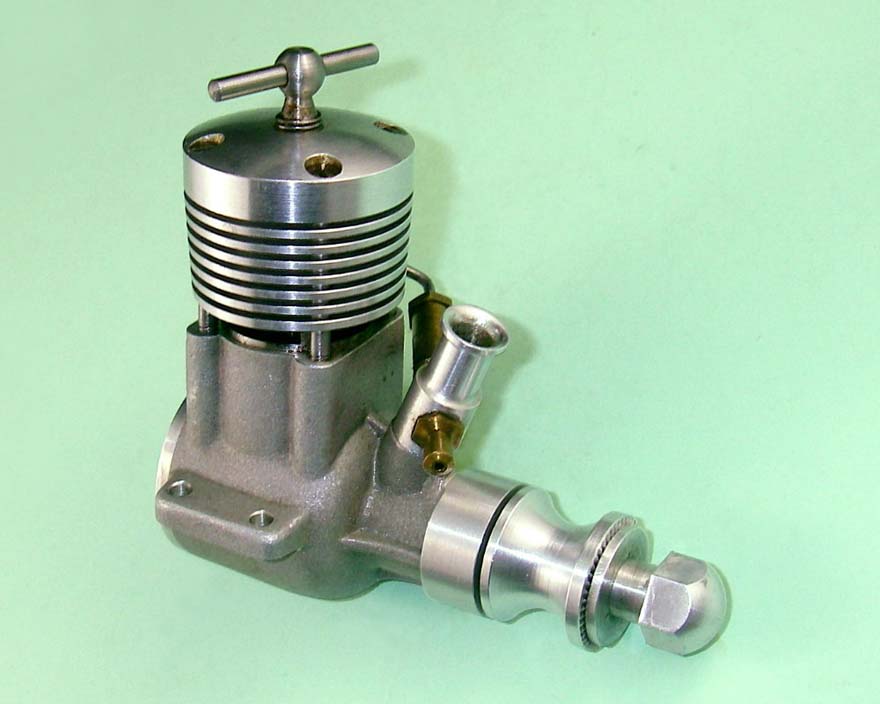

The difficulty and expense of obtaining the relatively scarce original Elfins led these fliers to investigate the replica route, creating a significant potential market for replica Elfin 249's. The first manufacturer to attempt to tap into this pent-up demand was the British firm of Dunham Engineering, which produced a number of near-replicas of the radial-mount Elfin 249 between 1984 and 1987. Most of these were sold in the US for use by vintage fliers in that country. Dunham Engineering were followed by Gordon Burford of Australia, who produced about one hundred examples of his own near-replica in 1989.
However, there were problems with both of these replica ventures. The Dunham Elfins proved to be highly variable in quality and performance, while Gordon Burford's delivery times on his replica were too slow to satisfy quite a few potential buyers. Quite apart from these factors, the combined production of these two manufacturers did not fully satisfy the burgeoning demands of the US vintage flying community. It was to tap into the quite substantial residual demand for such engines that the ARGO "Elfin replica" was created.
We have noted earlier that a significant proportion of US vintage fliers fall into the third of the market categories discussed in the previous section. That is, they were (and still are) attuned to competitive participation in events requiring the use of equipment having an old-time appearance without undue regard for absolute adherence to historical accuracy in terms of design, construction and performance. Those holding divergent views are under no compulsion to take part ...
It was specifically to meet the needs of these fliers that the ARGO was created. According to Tim Dannels, the ARGO was never intended to be an exact copy for collectors or purist vintage fliers. Rather, it was built primarily to create a strong-running modern "look-alike" version of a recognized classic model engine for use by those members of the US Old Timer competition crowd who preferred to use diesels. We have to keep this in mind when evaluating the engine.
The ARGO "Elfin replica" was marketed by a company calling itself ARGO U.S.A. and giving its address as:
ARGO U.S.A. 3229 Dianora Drive Palos Verdes CA 90274 USA
It turns out that ARGO U.S.A. was a business title used by a chap named John Targos, who was reportedly a longshoreman in Los Angeles. The above company address was then, and remains today, a modest 1800 square foot three-bedroom private house in a strictly residential area—clearly it has never been an industrial manufacturing facility. The implication is that this was in reality John Targos's residential address.
In 1989, recognizing the pent-up demand among US Old Time fliers for a strong-running Elfin 249 replica or at least a look-alike, Targos began to explore the possibility of arranging for the production of a run of model diesel engines loosely based upon the original 1949 Elfin 249 radial-mount plain bearing model. He was of course aware of the excellent GB Elfin 249 replica then being produced in limited quantities in Australia by Gordon Burford. This engine had first appeared in late 1988 and remained in production at modest levels as the eighties drew to a close. In 1989, recognizing the value of Gordon's prior experience with the Elfin, Targos approached him for his advice, offering a modest fee as compensation.
David Owen tells us that Gordon was actually quite happy to turn the replica Elfin field over to Targos. He had made perhaps 100 examples of the GB replica but was finding it impossible to respond to demand in a timely manner. Accordingly, he was happy to provide the requested assistance to Targos. A range of advice was immediately forthcoming, including the provision of at least one complete example of the GB Elfin replica plus a few parts and tooling sketches for Targos to study. Sadly however, this turned into the old, old story—none of Gordon's assistance was ever acknowledged, nor was Gordon's modest fee ever forthcoming. Not a positive reflection of the ethics involved—it's good to be able to set the record straight after all this time and finally give Gordon the credit to which he is fully entitled.
Be that as it may, after considerable delays arising from teething troubles and production difficulties, the ARGO Elfins finally began to appear on the marketplace in 1992. They were marketed as the "ARGO Elfin 2.49 cc diesel engine"—no mention of the word "replica". The engine's widespread replica identification evidently arose strictly from the use of the Elfin name. The manufacturer's own statement regarding the engine's purpose read as follows:

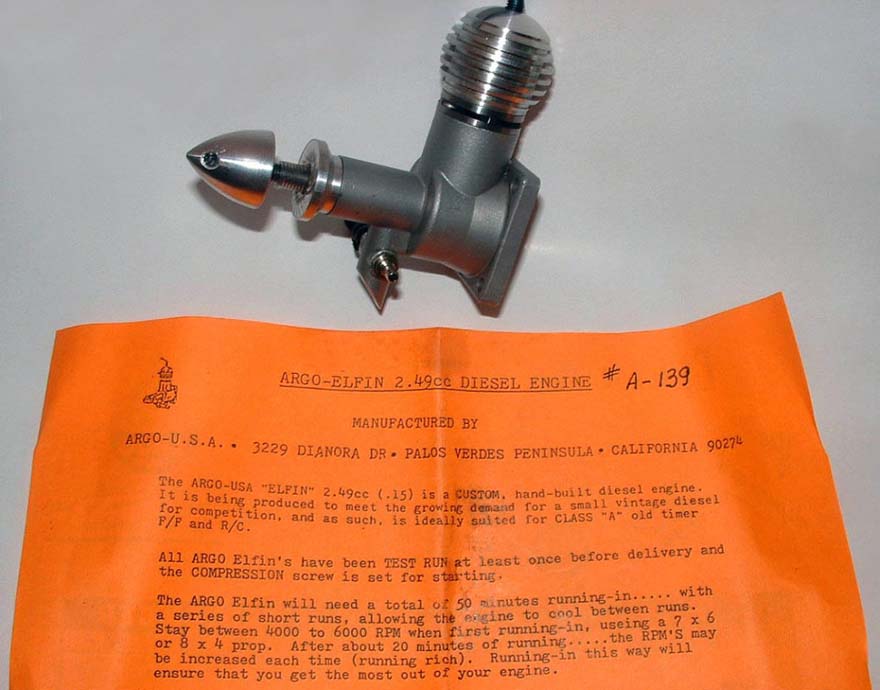

"The ARGO-USA "Elfin" 2.49 cc (.15) is a CUSTOM, hand-built diesel engine. It is being produced to meet the growing demand for a small vintage diesel for competition, and as such, is ideally suited for Class A old timer F/F and R/C".
It's worth noting that at no point does the manufacturer appear to have made any specific claim that this was a true replica, at least in the literature supplied with the engine. Note also that the word "Elfin" was rendered in quotation marks. Finally, it's important to recognize that the engine's openly-stated purpose was Class A old timer competition under prevailing North America rules.
Very little of the actual manufacturing was carried out at the company's address in Palos Verdes, which was strictly a residential location as noted earlier. It appears to be a generally-known fact that the ARGO investment castings were produced to a very high standard by the recognized master of that art, Larry Jenno of Las Vegas, Nevada, USA. David Owen was kind enough to contact Larry directly to inquire about the full scope of his involvement with the ARGO project. Larry was able to confirm that he did indeed make the dies and arrange for the production of the investment castings for this engine. What is less well-known is the fact that Larry actually produced and assembled all the components for the first 25 examples, sending them as complete units to John Targos along with the rest of the castings.
According to Larry, the components for all of the additional engines were made and finished by Lew Mahieu, who sent them in unassembled batches to John Targos. The remainder of the engines in the production run were assembled from these components by Targos and his son working together. This was Targos's sole involvement in the manufacture of these units. Apart from the components supplied by Lew Mahieu, a few proprietary components were also used—for instance, the needle valve assembly was a standard O.S. 10 FSR unit.
John Targos's personal involvement was thus confined to arranging for the manufacture of the components by others, assembling the finished components (apart from those assembled by Larry Jenno) and marketing the completed engines. He appears to have done so from what was clearly his private residence at 3229 Dianora Drive in Palos Verdes.
The engines were supplied with a clearly-written instruction sheet which bore the serial number of the engine which it accompanied. All engines were supposedly test-run before dispatch, with the compression screw being left at the starting setting. The instructions regarding running-in were both clear and entirely appropriate. A total of 50 minutes running-in time in a series of short runs was suggested, with complete cooling in between. Sound advice—those heat cycles are vitally important for a new diesel using all-ferrous piston/cylinder technology!

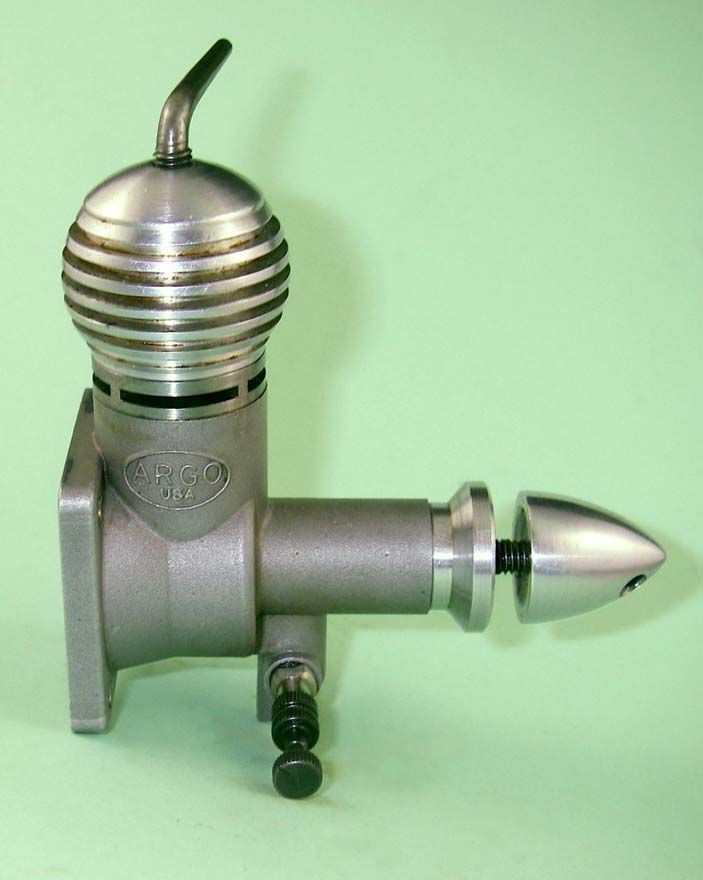

Having set the scene for the introduction of the ARGO (as we will henceforth call it), let's now take a brief look at the engine itself.

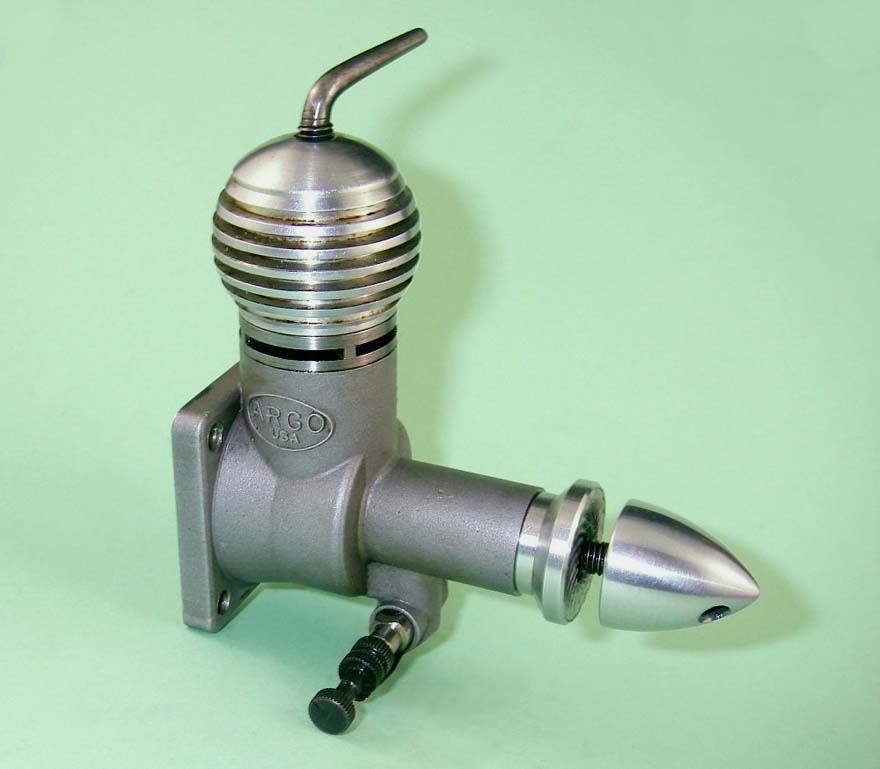

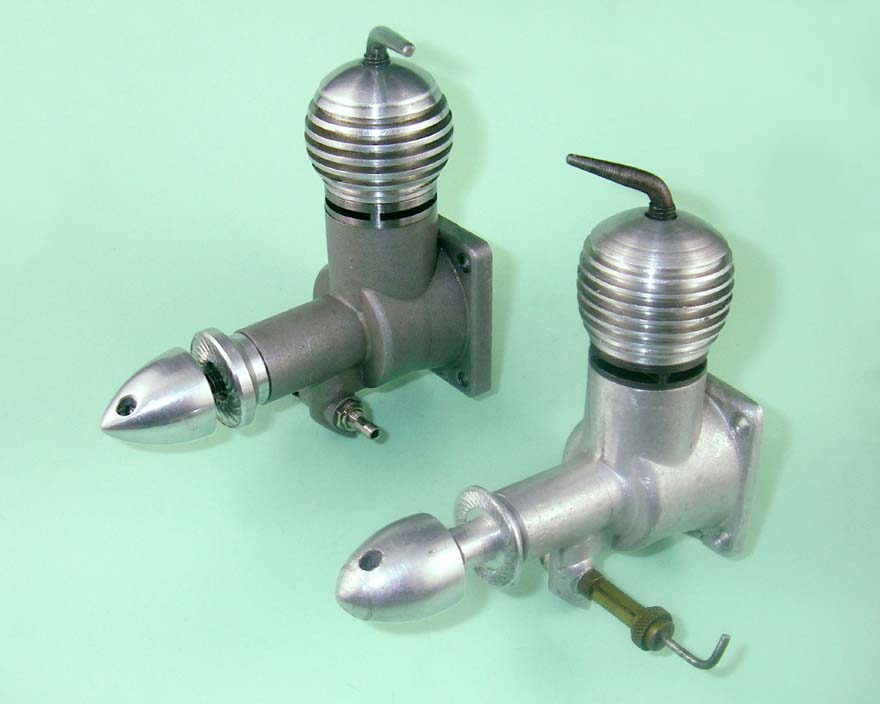

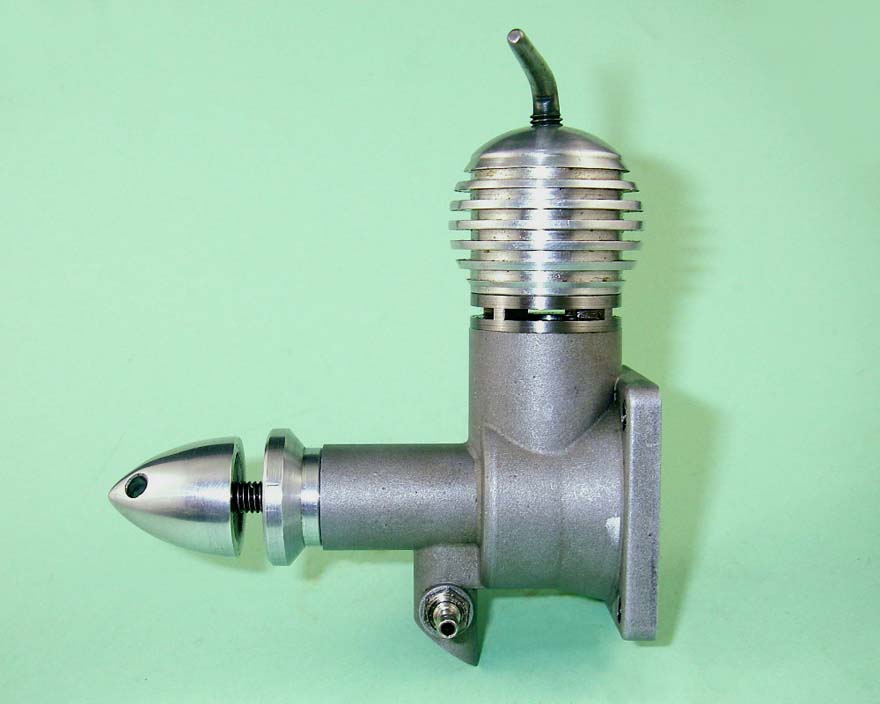

As always, a few vital statistics are in order at this point. The ARGO features measured bore and stroke measurements of 0.571" (14.50 mm) and 0.590" (15.00 mm) respectively for an actual displacement of 2.48 cc (0.151 cuin.) and a stroke-bore ratio of 1.035:1. The engine weighs in at 125 gm (4.41 ounces)—somewhat heavier than the original Elfin, which weighed only 113 gm (3.98 ounces), but still quite light for a diesel of this displacement.
The original 1949 Elfin upon which the ARGO was loosely based featured corresponding measurements of 14.07 mm and 15.87 mm respectively for an actual displacement of 2.47 cc (belying its 249 title!) and a stroke/bore ratio of 1.128:1. The ARGO thus has a considerably reduced stroke-bore ratio compared to that of the original Elfin, presumably with a view towards improving its top-end capabilities.

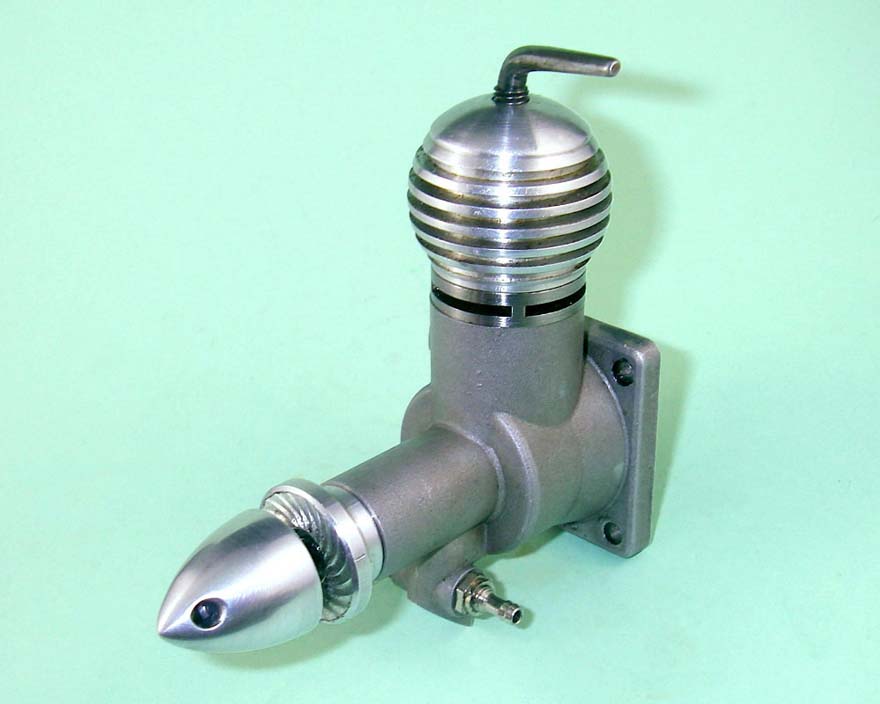

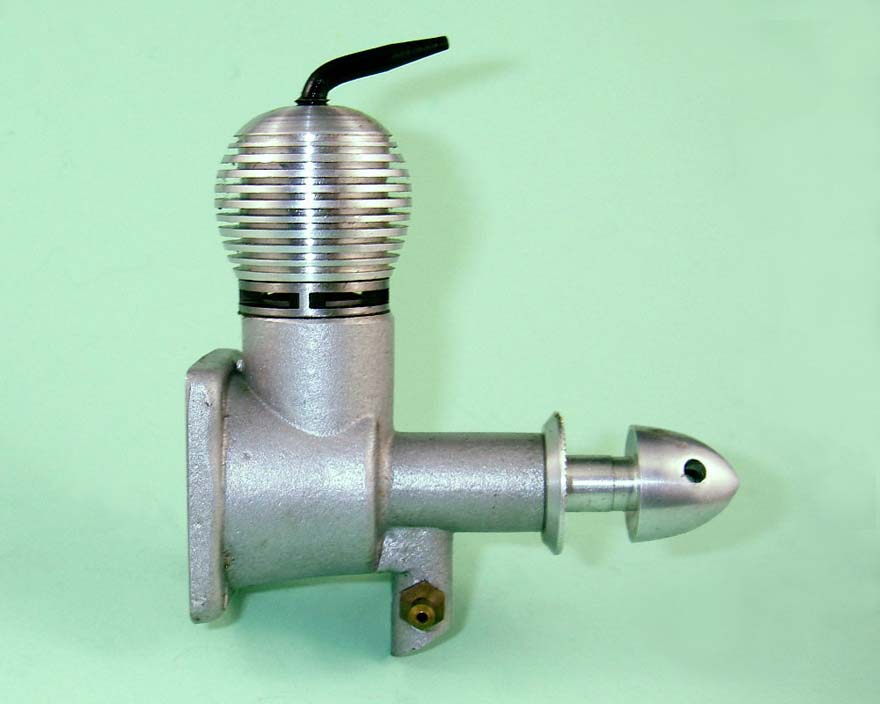

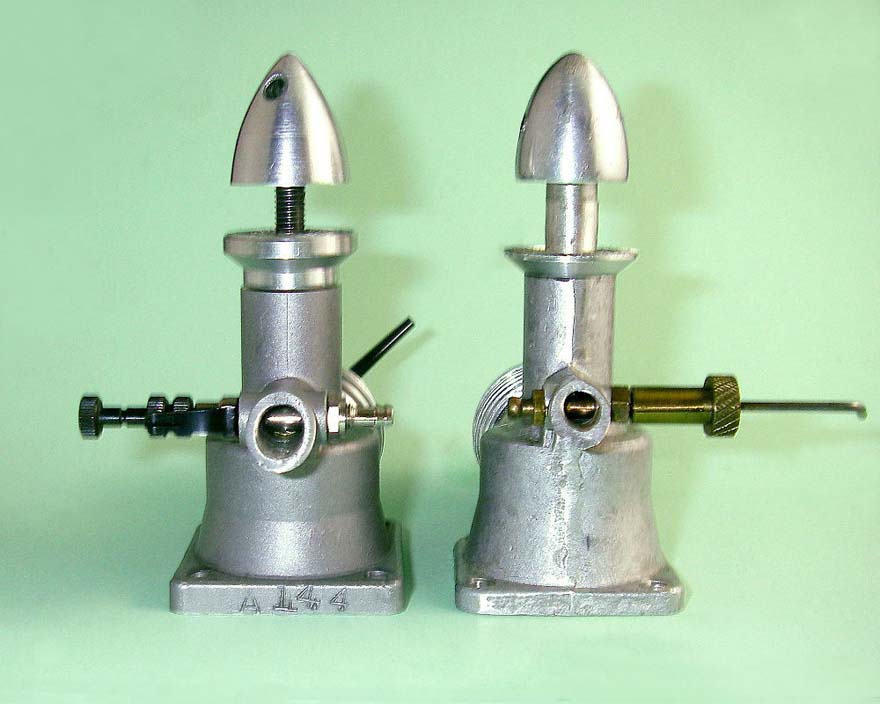

The general layout and appearance of the ARGO undeniably suggest those of the original Elfin model upon which the engine was loosely based. The cylinder porting system is the same, although the ports themselves have been modified. The ARGO retains the rather massive sub-piston induction which characterized the original Elfin model. The FRV induction with updraft venturi is also retained, as is the screw-in cylinder with alloy screw-on cooling jacket. Like the original Elfin, the ARGO also features a single-arm compression lever, although the lever used on the ARGO is far longer than that employed in the original. Finally, like the Elfin original, the ARGO is arranged strictly for radial mounting.
Both the ARGO and the original Elfin are basically conventional British-style FRV plain bearing diesels which follow the emerging standard "competition" format of the late 1940's and early 1950's, with few if any notable design quirks. In fact, the broad descriptions of the two models remain sufficiently similar and comfortably familiar that there seems to be little need to present a detailed description here—the attached images tell the story.
The amended stroke-bore ratio noted earlier provides the first clear indication of the ARGO designer's priorities. A primary goal from the outset was clearly to realize the maximum possible performance from the engine. If this meant sacrificing originality, that was viewed as being quite acceptable. The overall design goal was obviously to produce an Elfin "look-alike" (as opposed to a true replica) which developed the maximum possible power for the layout. Such an engine would appeal to those fliers, predominantly (but not exclusively) in the USA, who adhered to the third of our user categories discussed earlier. This was clearly the target market driving the development of this engine, and the servicing of this market is of course a perfectly legitimate motivation—no-one was compelled to buy the resulting product! Again, we have to bear this in mind when evaluating the results.
The amended bore and stroke measurements are by no means the only design changes having a functional basis. Other changes of this nature include the previously-noted modified cylinder porting, a counterbalanced full-disc crankweb, a cast venturi intake having a larger external diameter to accommodate a significantly increased venturi throat area, a larger central gas passage in the crankshaft and a far more substantial radial mount plate at the rear. The engines also feature the O.S. needle valve assembly mentioned earlier. Admittedly this is functionally superior to the original Elfin design, but it bears no resemblance whatsoever to the original.
One justifiable change in the context of the target market is the use of American threads throughout. Given the predominantly American clientele at which the engine was aimed, this appears to me to be a perfectly reasonable provision in order to facilitate repairs and replacement of damaged parts by the anticipated users of the engine.

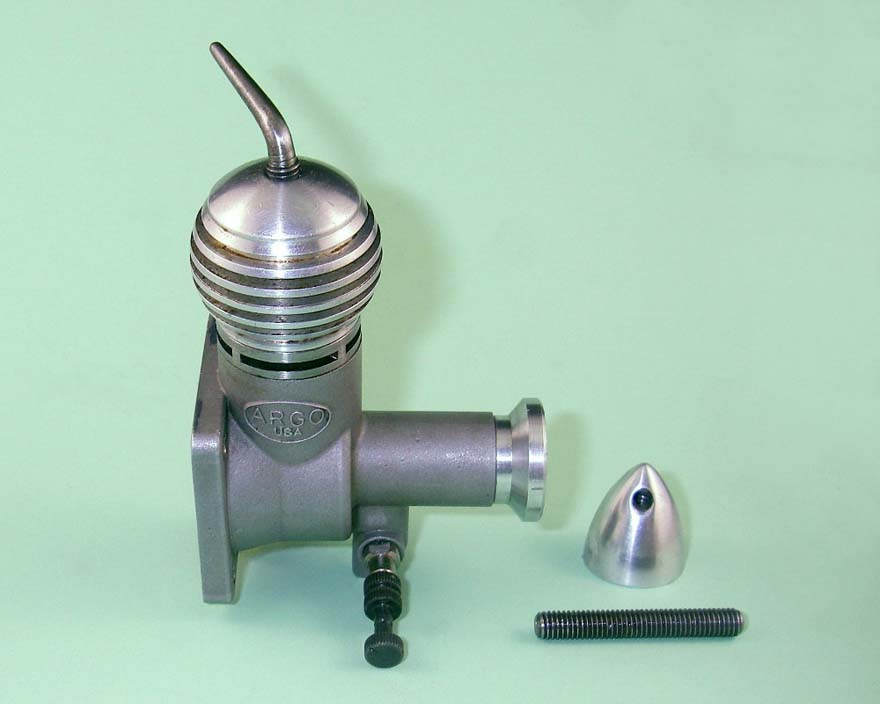

Another change from the Elfin design is the use of a separate threaded prop mounting stud which screws into a tapped hole in the centre of the truncated crankshaft. This is of course a functional improvement, since the bending or stripping of the prop mounting thread is easily and cheaply remedied by the fitting of a new stud. The thread used is 3/16-32 NF.
A change that was most definitely not an improvement is the means of locking the prop driver to the crankshaft. The original Elfin used a taper machined onto the front of the crankshaft journal, with a matching internal taper in the prop driver—a practically bullet-proof system. By contrast, the ARGO uses a single flat machined into the shaft at the front, with a corresponding flat formed in the internal bore of the light alloy prop driver. This alloy flat is far too narrow to provide adequate bearing area. In service, it soon became wobbly and eventually failed, breaking the locking of the prop driver to the shaft.

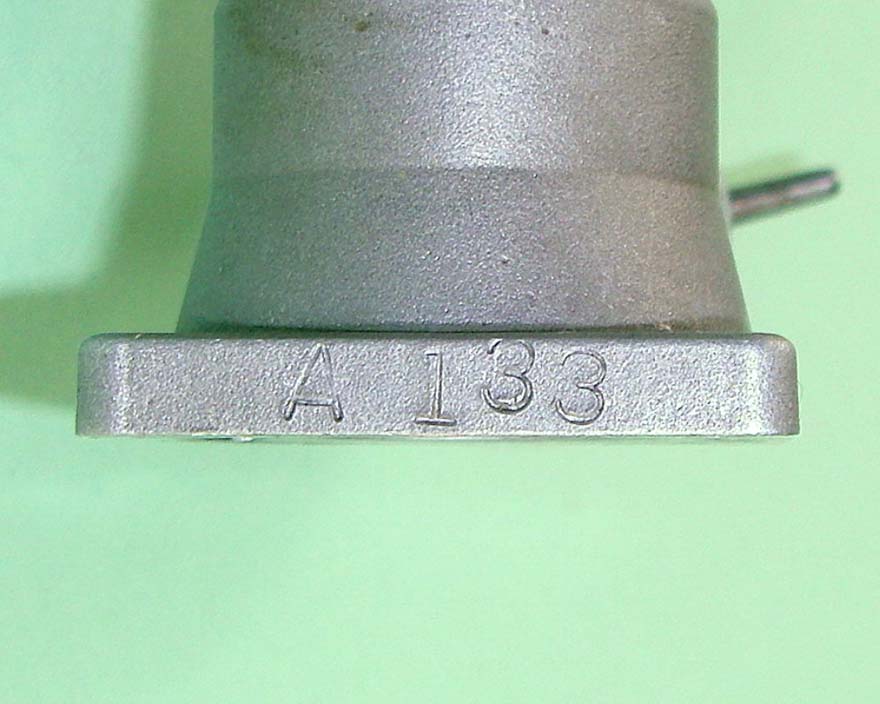

My own used example number A-133 suffered from this defect despite being nowhere near worn out—the prop driver was on its last legs. A few more starts would have seen it off. The only fix was the making of a tapered brass split collet used in conjunction with a matching taper machined into the rear of the prop driver bore. This approach completely solved the problem. It should have been adopted from the outset.
Another really annoying feature of the ARGO is the fact that its radial mounting holes are just sufficiently different from those of the original Elfin that the two engines are not directly interchangeable in the same model. This has always been one of my own major beefs with "replicas"—if there's one thing that they should replicate, it's the mounting hole pattern! There are other ways of identifying a given engine as a replica ...
The matching of the mounting hole pattern allows the use of an original engine for non-competitive "fun" or demonstration flying with a switch to a replica for higher-risk or longer-term operation if desired. It has always escaped me why so few "replicas" adhere to this principle. Heck, even CS of all people got this right with their Elfin replica, which is directly interchangeable with an original. There was no reason whatsoever why ARGO U.S.A. couldn't have done so as well. Come to that, CS could have done better with almost all of their other replicas ...
To close this brief descriptive section on a more positive note, it should be mentioned that the quality of construction of the ARGO appears to be well up to the better standards among "replica" engines of this nature. None of the three examples examined during the preparation of this article exhibit any noteworthy manufacturing issues. In particular, the piston/cylinder fits in all three examples were found to be pretty near perfect, nor was there any sign of distortion of the cylinder bore when everything was tightened down securely.
The ARGO On Test
In the past, when testing an engine that is overtly based upon a given prototype, I have always tested such an engine in company with the original. In the present instance, it was apparent that such a comparison might be less relevant than usual. As I trust we have shown, the ARGO is not even close to being a true replica of the Elfin 249, nor was it intended to be. It is in fact a completely different design in functional terms, albeit dressed up to bear a general similarity to the Elfin in terms of its appearance. There is thus no basis for expecting the performance of the two engines to be remotely comparable.
This being the case, I approached these tests with a completely open mind as regards performance expectations. It was my intention simply to evaluate the ARGO on its own merits with the goal of obtaining some hard data on its performance characteristics. However, just for fun I also decided to try both an original Elfin and my tweaked CS Elfin replica, which I knew ran very well indeed in the air following a complete overhaul and fettling by myself.

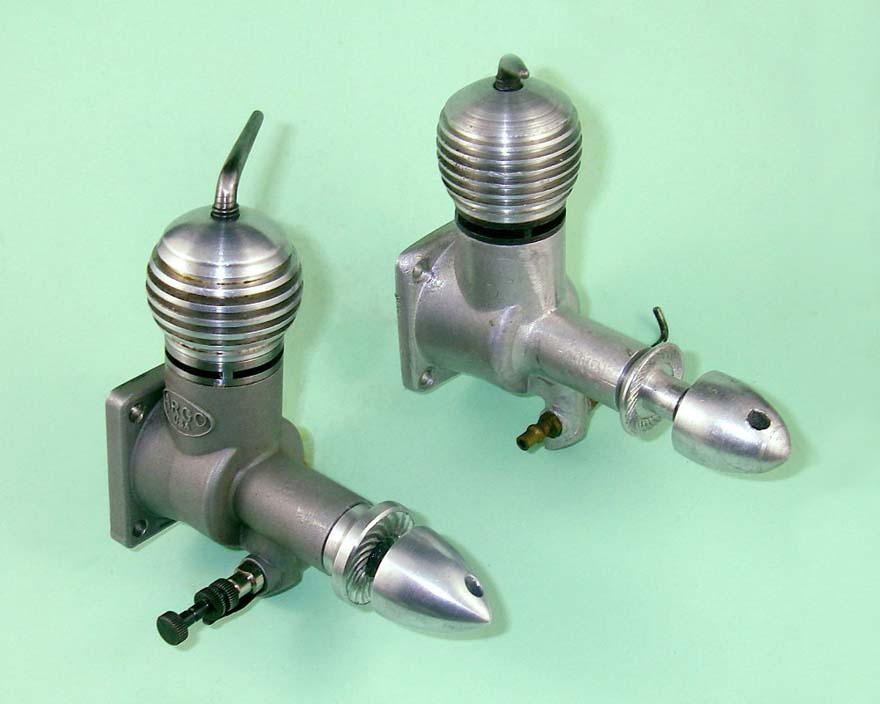

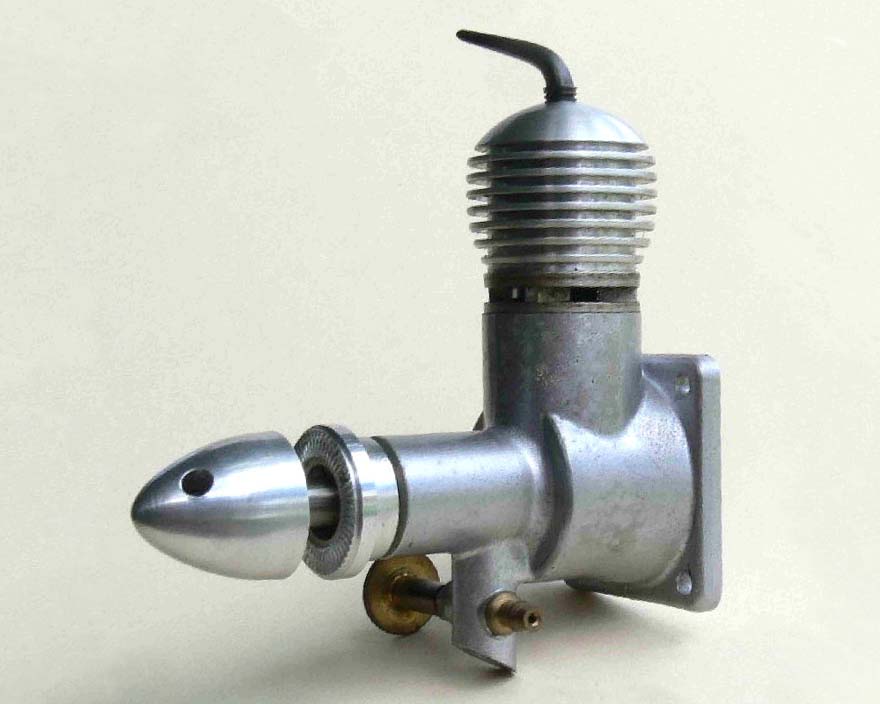

It has to be admitted that of the two "replicas" tested, the CS is visually considerably more faithful to the original than the ARGO. It is also very similar indeed internally. It actually qualifies in my book as being pretty close to a true replica. However, in order to make it useable I had to dismantle it completely, clean it very thoroughly and then go through it carefully to correct a number of manufacturing deficiencies, including the crankshaft heat treatment and the piston fit. I also matched and optimized the porting, which left something to be desired as delivered. After all of this was done, the engine proved to be a very good starter and runner which had an excellent performance in the air. So far, it has also proved to be quite durable, having held up well after some hours of hard use in a control line model. However, I have yet to see an example of this engine which did not require a significant amount of well-informed owner intervention to make it useable. Buyer beware!
By contrast, the example of the ARGO that I elected to test (number A-133) gave the impression of being a very well-made unit which was all ready to go to work as received. Indeed, it had clearly received considerable use before it came into my hands. I am advised by others that this was typical of the ARGO engines—all of them apparently gave the impression of being very well made throughout, including unused example no. A-144 and little-used engine no. J-169 which were also available for inspection when I was researching this article.

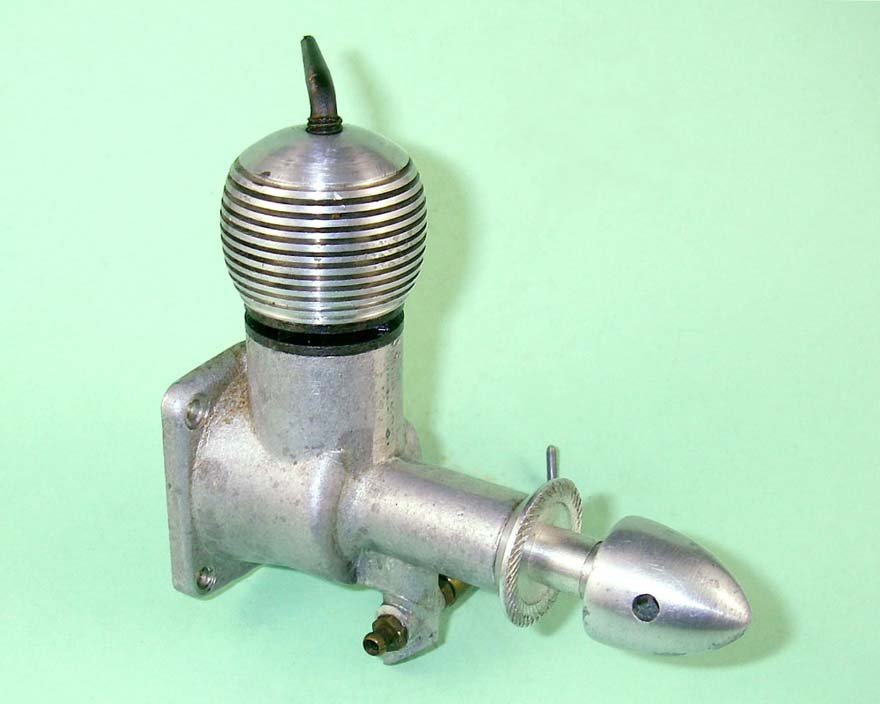

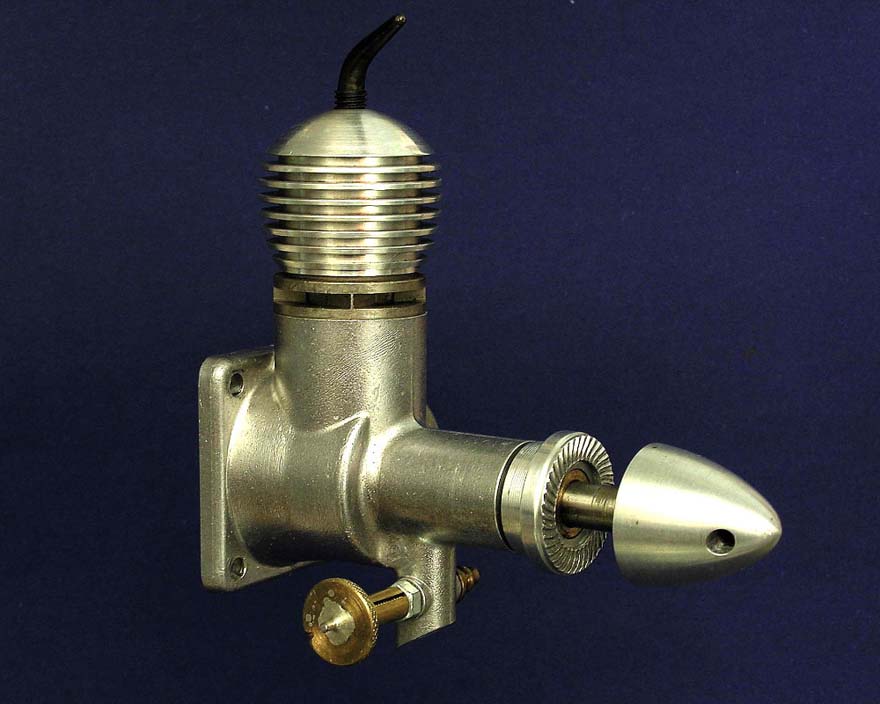

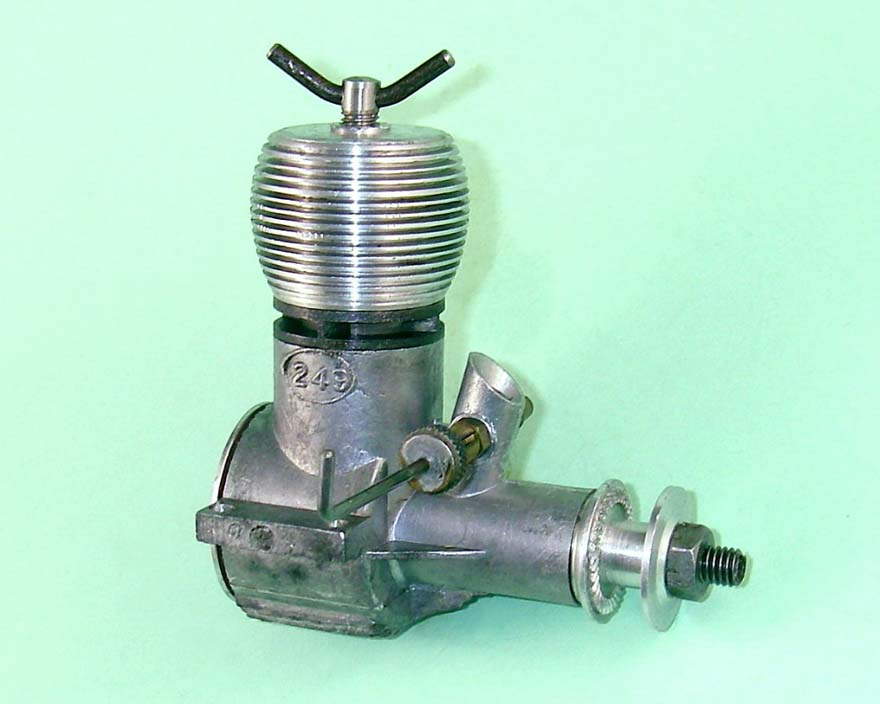

The original Elfin used in the test was (and is) in fine original condition. It actually appeared to be relatively little-used, but nonetheless seemed ready to take its place in my testing line-up. I had not run it previously, thus having no idea of what to expect.

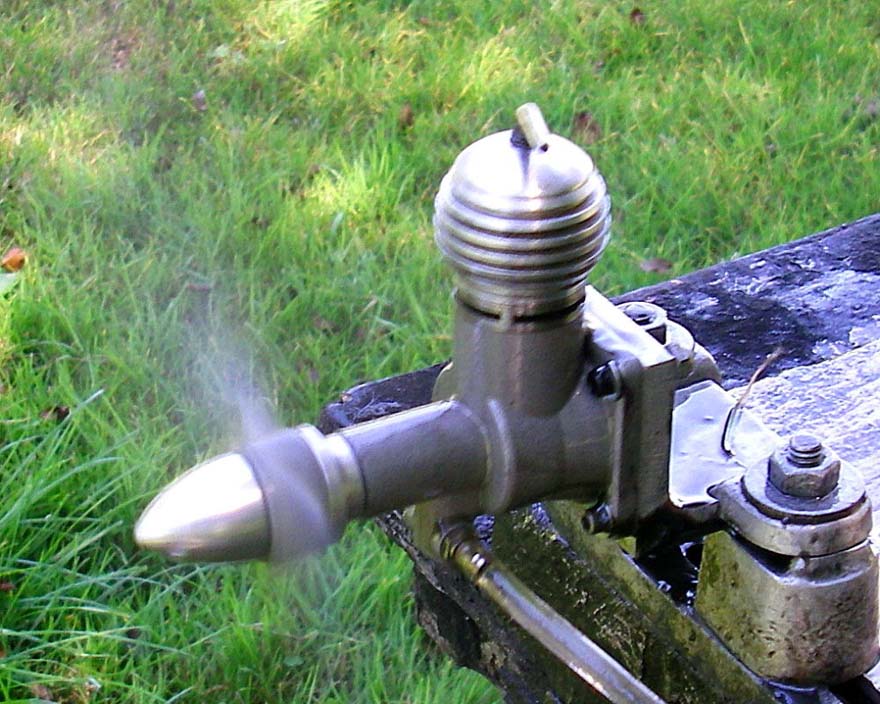

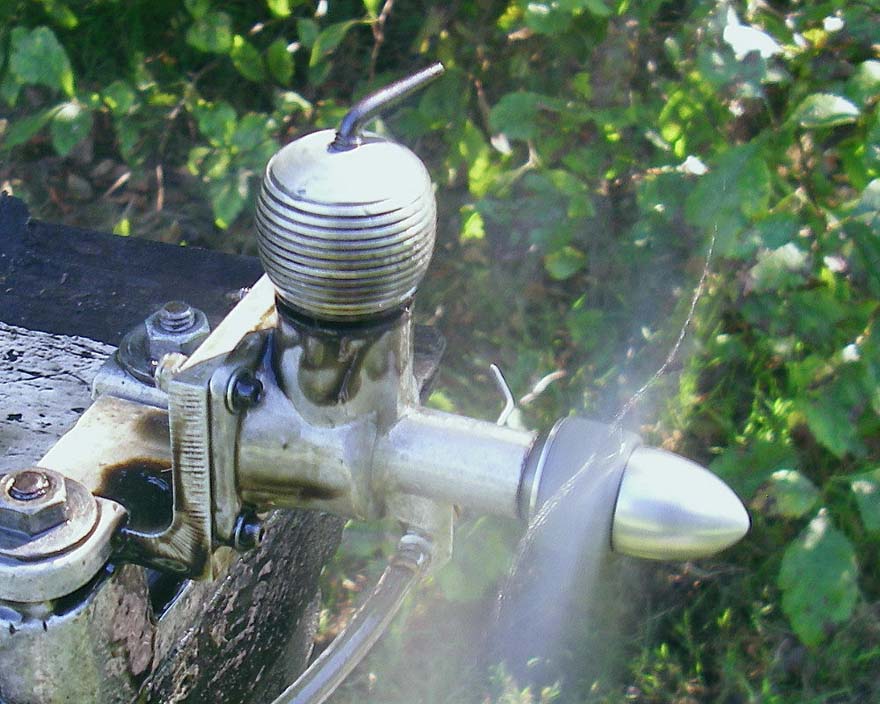

Having drilled and tapped my radial mount test block to take the ARGO (which I would not have had to do if they'd got the hole spacing right!), I headed to the test area for my regular maintenance fix of model diesel fumes—that lovely aroma which for me has always been synonymous with the word "fun"! Allowing my curiosity to get the better of me, I started right away with the ARGO.

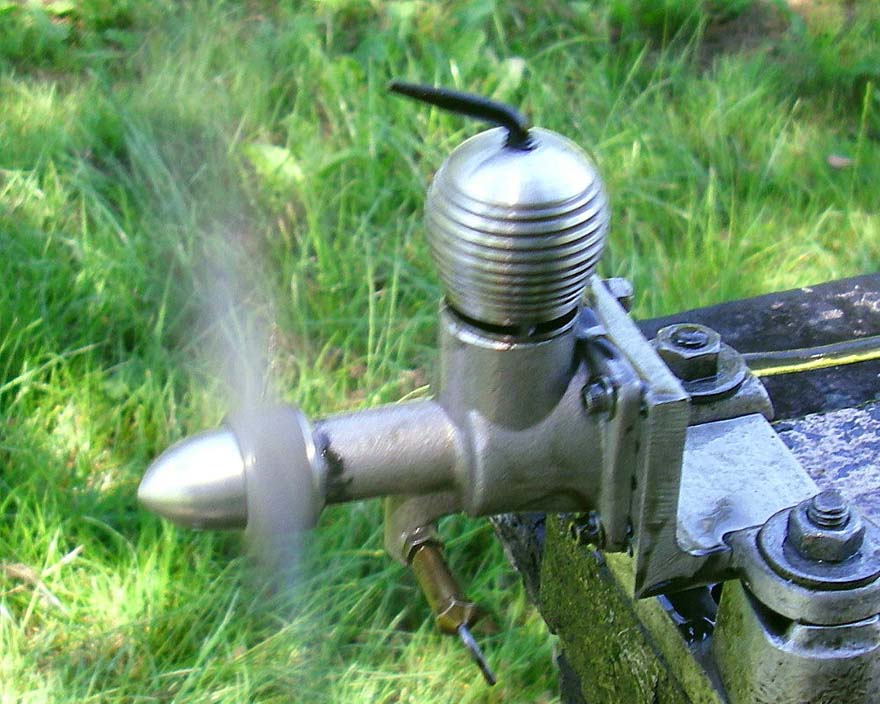

The ARGO proved to be an excellent starter as long as a light prime was first administered. This is a common characteristic of updraft intake engines in an upright mounting—the fuel drawn to the intake by choking simply drips out of the venturi rather than being ingested by the engine. However, a small prime invariably produced a start within a few flicks. Suction was clearly excellent, allowing the engine to start on the prime and immediately pick up the fuel in the supply tube.
Once running, the ARGO proved to be very easy to set. Both controls were extremely responsive—in particular, it must be objectively admitted that for all its lack of true Elfin character, the O.S. needle valve is functionally superior to the original Elfin item. Running qualities were very good indeed—the engine held a steady mis-free note and seemed ready to keep doing this as long as required. Overall, it proved to be a very easy engine to test, with steady rpm figures being readily obtained over what I was expecting to be the engine's useable speed range.

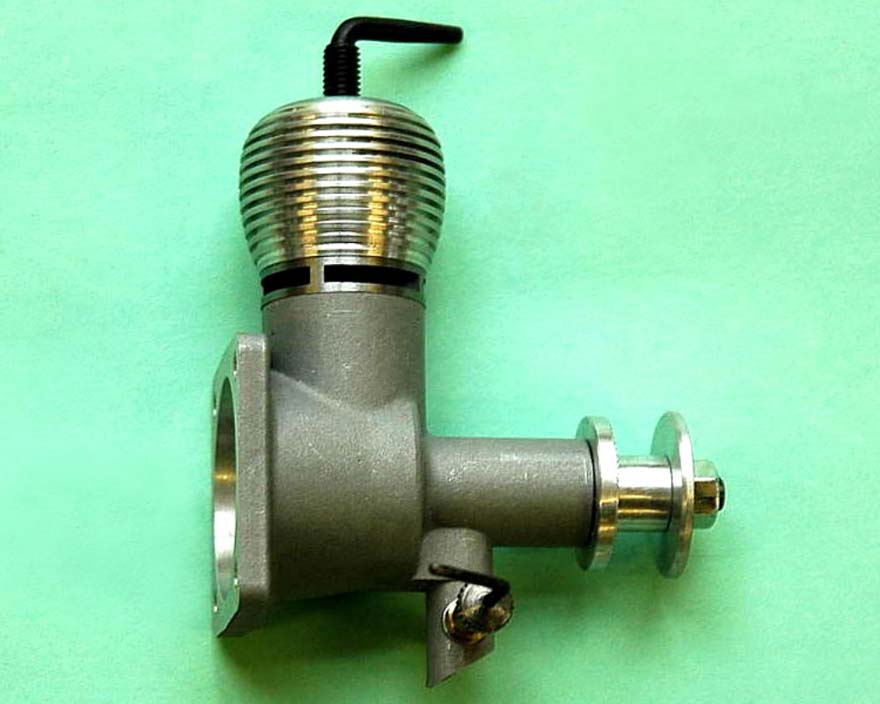

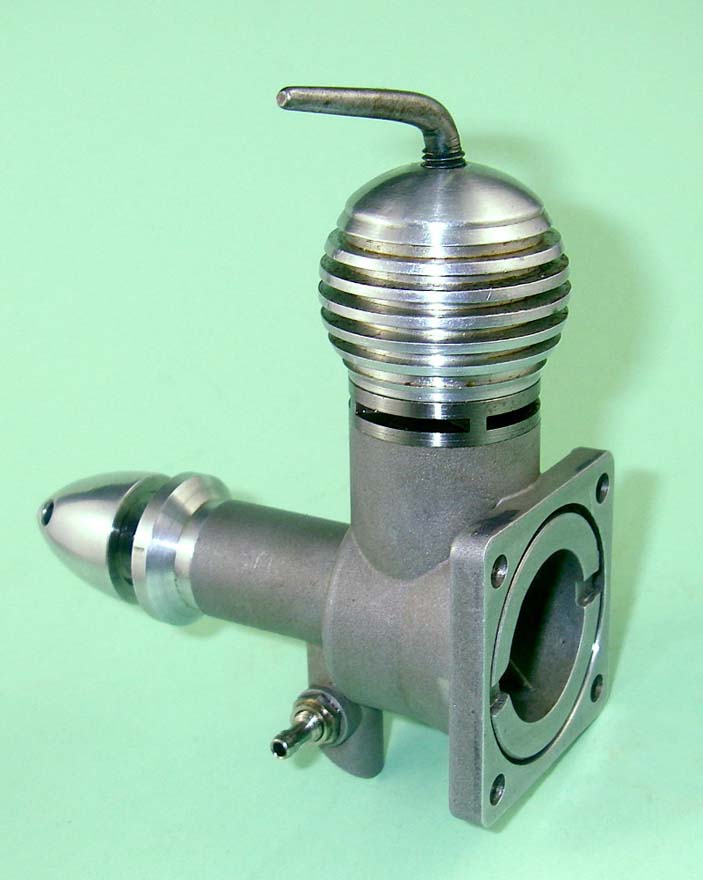

After finishing the ARGO tests, I switched to the other replica, the CS. It was immediately apparent that this example of the CS (which has been carefully reworked by me, remember) would out-perform the ARGO by a very substantial margin. It was just as easy to start and tune as the ARGO—the PAW needle valve assembly with which I had replaced the rather wonky CS original was just as effective as the O.S. component fitted to the ARGO. Again, the recording of rpm figures for the same props as the ARGO proved to be very straightforward indeed.

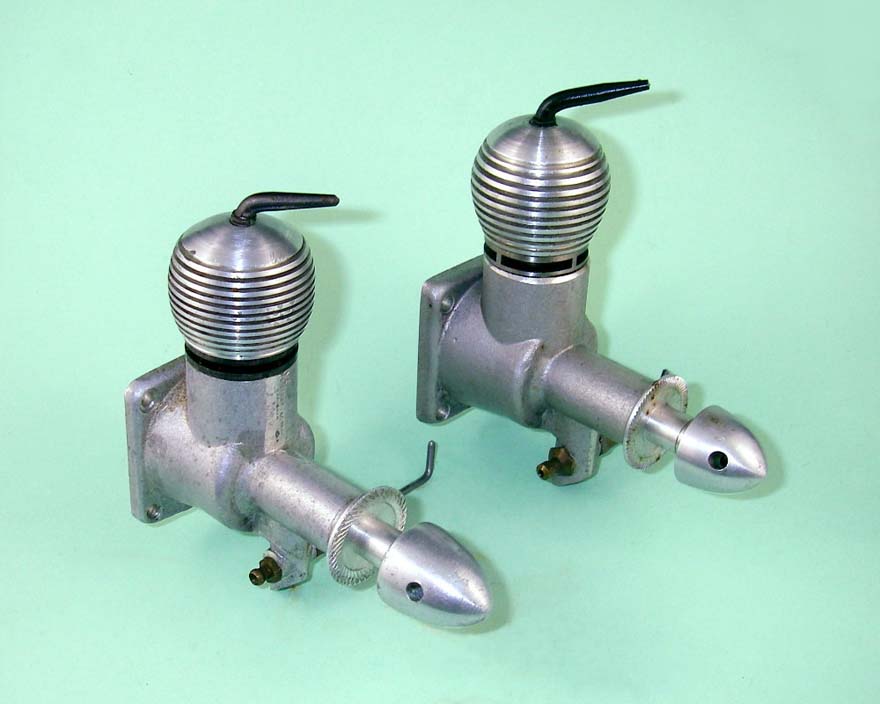

After this, it was the turn of the original Elfin 2.49 radial mount model. This example appears to have been run in and used, but clearly has only a few running hours on it. There may have been reasons for this—as matters turned out, the crankshaft journal in this example was clearly fitted too closely, to the point that friction was excessive and lubrication supply was compromised. The bearing was soon found to tighten as the engine warmed up, with consequent sag together with clear signs of bearing overheating. The engine would keep going with the needle set a bit rich, but there was no way that this example would give of its best without some attention being paid to relieving the shaft fit. I decided on the spot to attend to this in advance of any further attempts to run the engine.

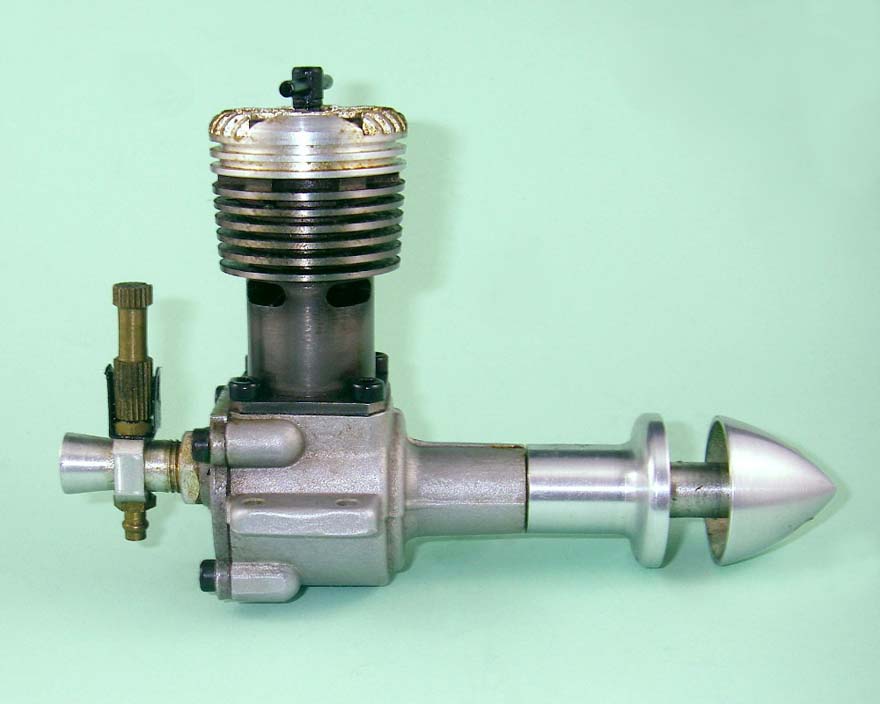

Fortuitously enough, I just happened to have a fairly "experienced" example of the second-generation Elfin 2.49 PB model on hand—the beam mounted design of 1950. The replacement of the original 1949 radial mount version with this beam mount model was widely regretted by users, who generally seemed to consider the earlier model to be the better performer of the two. For my own part, I agree with those who feel that the early model was the more sturdy variant, but I have found little practical difference in performance terms between the two versions of the Elfin 2.49 plain bearing model. Accordingly, I decided to let the beam mount Elfin do a little pinch-hitting for its ailing sibling! I had actually flown this example, so I knew that it would perform up to par.

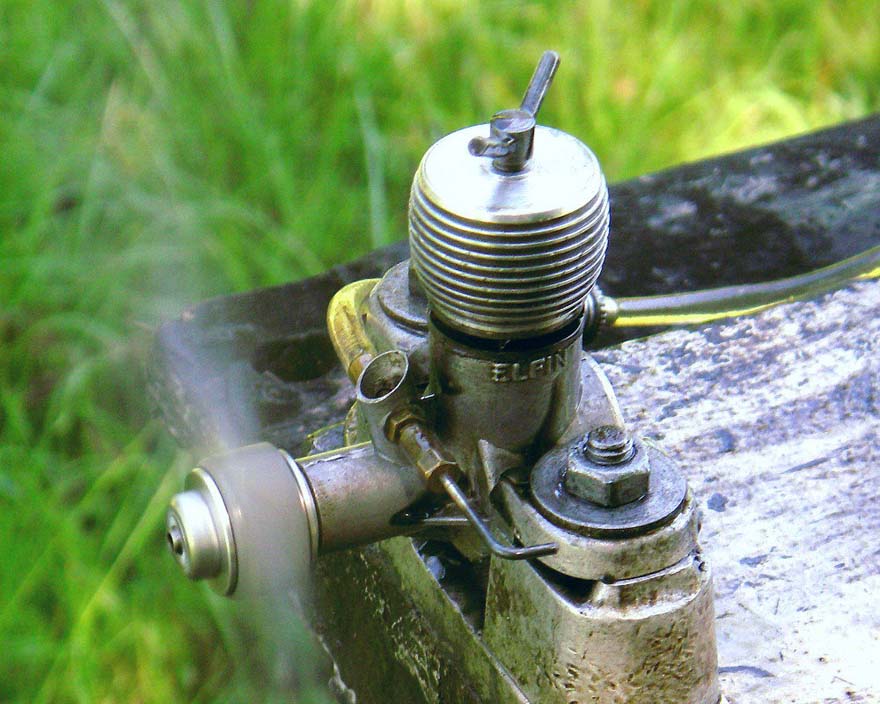

As events proved, the beam mount Elfin did me proud, starting and running flawlessly. Despite a somewhat touchy needle valve, it was generally just as easy to tune for best performance as the other two, also running very smoothly throughout. However, its performance did not come up to that of the CS replica, although it was more than a match for the ARGO. The comparative figures for the three engines obtained using the same fuel and props on the same day are summarized in the following table:
|Prop||ARGO Elfin||BHP||CS Elfin||BHP||Elfin PB||BHP|
I'd have to say that the above results incorporate what for me were two complete surprises! First, I was frankly expecting the ARGO to perform at a significantly higher level than it did—the various design changes which it exhibited certainly supported such an expectation. And two, I was outright amazed at the performance of the CS replica! It would appear that my efforts to sort out that engine and optimize the porting were successful beyond any reasonable expectations! I knew from some hours of flying experience that the engine ran very well indeed in the air, but seeing the actual numbers was still a bit of an eye-opener!
The ARGO turned out to be a very user-friendly engine having a performance which was quite comparable to published figures for the original radial mount Elfin 2.49 PB. Although I didn't get an opportunity to test my original (I'll have to sort it out and do a re-test sometime), I note that Peter Chinn reported figures of 0.24 BHP @ 12,000 rpm for that model. The attached derived power curve for the ARGO implies a peak output of around 0.24 BHP @ 12,300 rpm or thereabouts—pretty much directly comparable with Chinn's figures. It appears that the various design changes embodied in the ARGO model didn't add up to any significant changes in the engine's performance characteristics.

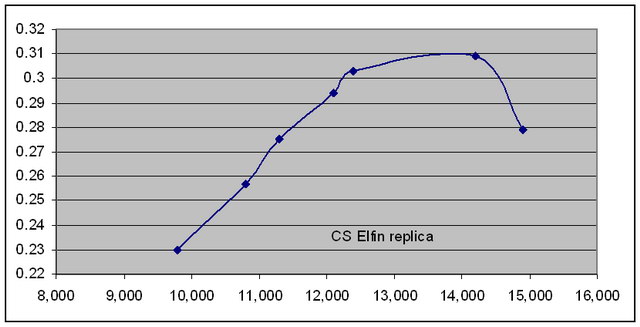

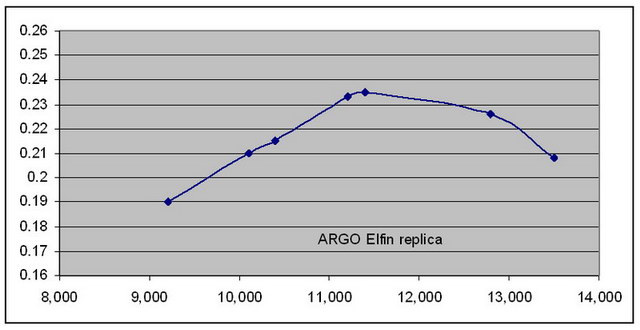

A notable feature of this curve is its unusually flat shape—the engine is clearly working efficiently (within its own limitations) at all speeds between 11,000 and 13,000 rpm, allowing considerable latitude in terms of prop selection. A cut-down APC 9x4 would appear to be an excellent choice for free flight work, while an 8x6 should work well in control line applications.

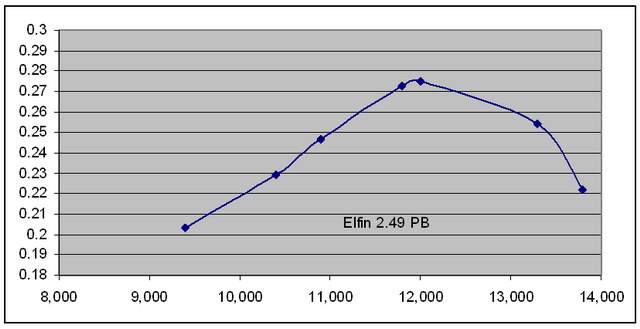

Like that of the CS replica, the test performance of the beam-mount Elfin 2.49 PB was well above expectations. Peter Chinn reported a peak output of 0.21 BHP @ 12,000 rpm for this engine, confirming the widespread contemporary impression that it was a less forceful performer than its radial mount predecessor. By contrast, the attached power curve for my own tested example clearly implies an output in the region of 0.278 BHP @ 12,500 rpm. It is of course possible that the considerable in-flight use to which this example has been put has freed it up significantly, allowing it to reach a higher level of performance than that reported by Chinn. It's also possible that Chinn got a sub-standard example, while I was lucky enough to get a good ‘un! The well-attested fact that Elfin standards of quality were highly variable, due mainly to the clapped-out war surplus machine tooling which was used in their manufacture, adds considerable credibility to the latter possibility.
Finally, there's the CS Elfin replica. What can I say? There will be those who doubt the veracity of the above results—I can't blame them, because the numbers are far in excess of what I myself was expecting, to the point that I re-tested several of the props to check that I hadn't misread the tach! All that I can say is that the numbers are exactly as recorded (and in a number of cases duplicated) in the field, and I'm happy to replicate the test for anyone who cares to visit! The power curve for this example of the CS Elfin implies a peak output of around 0.315 BHP @ 13,300 rpm or thereabouts—a stunning performance for this engine. I guess I got it somewhere near right in my efforts to improve upon what CS provided! The fact that the engine is very well freed up from some hours of actual use in the air doubtless doesn't hurt either.
The significance of the results for the CS Elfin replica lies mainly in the clear testimony which the numbers provide of the potential of that original 1949 Elfin PB design. As noted earlier, this example is a very close replica of the original—my intervention was confined to sorting out the manufacturing issues and optimizing the porting. Any knowledgeable owner of an original Elfin could have done as much.
Subsequent Additional Testing
Upon my return from the testing session described above, I immediately tore down the original Elfin 249 PB radial mount model to deal with the excessively tight main bearing. The judicious use of a little lapping relieved the fit to what I considered to be an appropriate clearance, after which the engine was reassembled.
At the next available opportunity I headed out again to re-test the engine. On this occasion, things went far better! My diagnosis of the problem had clearly been correct, since the engine would now run smoothly and steadily for as long as required on any prop, with no evidence of excessive heating of the main bearing. Starting was foolproof provided the usual small prime was first administered. The figures obtained on this test were as follows, along with the derived power curve:

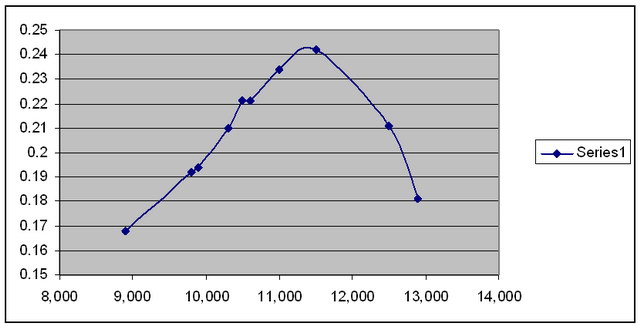

I seem to have missed the setting on the Taipan 9x4! Regardless, as the above power curve shows, the engine evidently peaked at around 12,000 rpm, at which point it was developing some 0.245 BHP. This is almost exactly the figure reported by Peter Chinn. It also confirms that in terms of peak performance the ARGO and the original Elfin are directly comparable. The one difference is that the ARGO has a flatter power curve, despite peaking at the same figures.
Production and Sales History
We saw earlier that the marketing of the ARGO engines commenced in 1992. As anticipated, they proved to be popular and well-received in the US, which of course represented quite a large market once vintage fliers had realised the advantages of the Elfin design for Class A events.
We have confirmed that the ARGO replicas were excellent runners when judged against typical vintage-style diesel standards. David Owen has commented that the ARGO was generally considered to be the most powerful of the Elfin-based "replicas", even including Gordon Burford's excellent GB model. I don't have one of the latter for testing, but the results reported above certainly bear out David's statement as far as they go—the ARGO is at least comparable to an original Elfin. The fact that my own CS replica outperformed the ARGO so comprehensively means little, since that example has been completely rebuilt and optimized.
As of 1992, the earlier Dunham and Burford replicas remained in limited circulation on the second-hand market, but the performance superiority of the ARGO over these two models was soon found to be such that it became the Elfin "replica" of choice among serious vintage competitors, particularly in the USA where the engine had been homologated by SAM for vintage competition. This naturally created increased pressure upon the supply of the engine. Moreover, interest in the ARGO was not confined to America.
In the face of this demand, delivery difficulties soon began to emerge. There are in fact indications that John Targos may have accepted more orders for the engine than he was eventually able to fill.
As an example, Ken Croft recalls ordering an ARGO Elfin from Targos during the period when the engines were still supposedly in production, sending the cash for the engine along with his order. After at least a year had passed with no sign of the engine, Ken started asking when it was going to appear. Eventually he became totally fed up and asked for his money back! Apparently Targos became unwarrantably abusive upon receiving this request, but eventually did return Ken's money. When Ken finally saw one of the ARGO Elfins he was actually glad that he had not received one because he knew Elfins very well, having grown up with them. The Argo Elfin was not an Elfin at all as far as Ken was concerned. He was expecting a true repro, not a mere look-alike.
However, a look-alike was perfectly acceptable to many buyers, particularly those in the USA. As a result, production was sold out by the mid 1990's and was not resumed. The engine continued to be available on the second-hand market, and its perceived desirability was reflected in a steady rise in the second-hand prices which would-be users were willing to pay.
The appearance of the CS Elfin 249 replica in 1994 initially seemed to represent salvation for modellers wishing to purchase a reasonably-priced and readily-available new Elfin replica which generally followed the design of the original quite closely. However, the highly dubious quality of that offering became common knowledge almost immediately. As we've shown, they can be made to work very well indeed, but not without a fair bit of knowledgeable intervention on the part of the owner. The CS Elfin replica was withdrawn from production some years ago, but examples remain on offer on eBay and elsewhere on a regular basis.
As a result of the CS replica's failings, diesel-minded vintage modellers in the USA continued to view the ARGO as being very much superior to its competition, making it a highly desirable engine for anyone wishing to participate in US Old Time Class A contests using a diesel. However, it was not only the fliers who developed an interest in the ARGO. Like many limited-production replicas or "look-alikes", the ARGO eventually became recognized as a distinct and desirable limited-edition collector's item in its own right. This led to a further reinforcement of the demand for the engine from the engine collecting community. The ARGO in fact continues to be in demand today (2013), selling among the collector community for prices as high as $200 for a new unused example complete with packaging and paper. Used examples remain in demand among the vintage flying crowd, albeit selling for substantially lower prices depending on condition.
No-one seems to know today how many examples of the ARGO "Elfin replica" were made in total. Even Larry Jenno is apparently unsure regarding how many sets of castings he made. However, the engines all bore serial numbers, which do provide some indication. With a single exception to be noted below, all numbers reported to date follow the same pattern of A-xx or A-xxx. The numbers are stamped onto the lower edge of the radial mounting plate at the rear of the crankcase. The serial numbers which have so far been brought to my attention cover a surprisingly limited range, extending from A-82 up to A-202.
This numerical range includes one engine which is something of an anomaly—engine number J-169. The significance of the letter switch from A to J is unclear at the present time. The possibility exists that the J prefix could indicate an entirely separate production series which re-started at engine number J-1, but we have no supporting evidence for this at present. It might also have something to do with indicating the individual(s) who assembled the engines. At present, we just don't know. We would appreciate clarification from any reader who may know more!
Regardless, present indications are that the numbering started at A-1 and that at least 202 examples were made and sold. However, the true number was probably considerably larger. Based upon the number of survivors which seem to be still circulating, I'd guess that as many as 500 or so may have been sold over a period of several years. More serial numbers would really help—if you have them, please share them!
The fact that the engines were both well-made and durable in addition to being valued by those who used them has doubtless contributed to their survival. Certainly, there appear to be quite a few of them still out there in circulation and still commanding marketplace attention.
In passing, it's worth noting that appreciation of the merits of the 1949 Elfin 249 radial-mount diesel has by no means diminished as time has gone by. Indeed, the ongoing interest prompted the appearance of yet another replica in 2007. This was offered for sale at $125 by Hobby Club as part of their PUMA range. It was a high-quality engine made in the Ukraine. Like the ARGO, it was not in fact a true replica, although in a number of ways it was actually more faithful to the original Elfin design.
If we go back to the Fischer Castor of 1951 and follow the story through the Dunham, GB, ARGO, CS and PUMA replicas, it's very hard to avoid the conclusion that the 1949 Elfin 249 can probably lay a persuasive claim to being one of the world's most frequently-replicated model engines. There could be no higher tribute to the enduring excellence of the design and to the talents of Elfin designer and manufacturer Frank Ellis.
One's perception of the ARGO will inevitably be conditioned to a large extent by one's views on the whole replica question discussed right up front in this article. If you're looking for an exact or near replica of the original 1949 Elfin 249, either to display or to fly, the ARGO will not satisfy you at all—it is in fact a comprehensively amended design that is dressed up to suggest the general appearance of the original Elfin.
This of course strikes at the heart of the philosophical divide which appears to exist within the vintage flying community. Although the ARGO bears a general resemblance to the Elfin original in terms of its external appearance, it is in fact an all-new 1992 model diesel design on the inside. When considering the acceptability of such engines for vintage competition classes, it's important that rule-makers fully and openly appreciate this fact. They are of course free to homologate such engines if they so choose, but they need to be very clear that in doing so they are in fact allowing a 1992 model diesel design into a vintage competition. Once that step is taken, each individual modeller is equally free either to take advantage of the freedom of choice thus offered or to decline the offer.
If you don't care about originality and merely want a fine-running and well-made 2.5 cc diesel engine having a broadly "vintage" appearance to use for flying purposes, the ARGO could be right up your street. It certainly performs at least as well as its Elfin prototype while retaining enough of the Elfin "look" that it does fit in visually with an overall vintage-looking package. This was of course its intended application all along, and I'd have to say that it was entirely successful in meeting that goal. It complies with the established Class A rules for vintage flying in America, which should undoubtedly ensure that examples remain in use for years to come.
Whether or not you're in the "purist" camp, it's actually very easy to see high-quality limited edition engines like the ARGO as collectibles in their own right rather than as replicas. That's certainly how I myself view the ARGO—in no sense a true Elfin replica, but a well-made and fine-running latter-day model diesel bearing a general stylistic resemblance to the Elfin 249 with a performance that matches that of the original very closely. Viewed in that light, it stands firmly on its own feet both as a genuine collectible or as a very acceptable engine to use in situations where period accuracy is not an issue (or when the rules allow it).
